SP10 Series Programmer

Update: 2024/1/3 16:56:57??????View:

Brand: SFLY
Type: SP10A,SP10B,SP10F
Downloads：
Software User Manual(en)

Introduction

SP10 series (SP10A/SP10B/SP10F) programmers are the latest highspeed mass production programmers for SPI FLASH launched by Shenzhen SFLY Technology. It is the upgraded version of SP8 series, which can support supports the high-speed programming of SPI NOR FLASH, I2C / MicroWire and other EEPROMs from domestic and foreign manufacturers.

Hardware features

● USB Type-C communication interface, no need for external power supply when used in USB mode;
● Support USB mode mass-production programming: automatically detects the chip insert and remove,and automatically starts programming; (Note: SP10A does not have this function)
● Support standalone programming: no need to connect to a computer when programming, built-in large-size memory saves the project data, multiple CRC data validation ensures that the programming data is absolutely accurate; (Note: only SP10F has this function)
● 28-pin ZIF socket, universal programming sockets are supported;
● RGB three-color LED indicates the working status, the SP10F can also indicate the success and failure via a buzzer;
● Support poor pin contact detection, effectively improve programming reliability;
● Short circuit / overcurrent protection function can effectively protect the programmer or chip from accidental damage;
● Programmable voltage design, adjustable range from 3.3V to 5.0V, can support 3.3V-5V chips;
● Provide equipment self-check function;
● Small size (size: 108x76x21mm), simultaneous programming of multiple machines only takes up a very small work surface;

Software features

● Support Win7/Win8/Win10/Win11;
● Support switching between Chinese and English;
● Support software upgrade to add new devices;
● Support project file management (project file saves all programming parameters, including: chip model, data file, programming settings, etc.);
● Support the reading and writing of additional storage area (OTP area) and configuration area (status register, etc.) of the chip;
● Support automatic recognition of 25 series SPI FLASH;
● Automatic serial number function (can be used to generate product unique serial number, MAC address, Bluetooth ID, etc.,);
● Support multi-programmer mode connection: one computer can be connected with 8 SP10B/SP10F programmers for simultaneous programming,The automatic serial number function is active in multi-programmer mode; (Note: SP10A does not have this function)
● support 8 SP10F to download standalone data at the same time;
● Support log file saving;

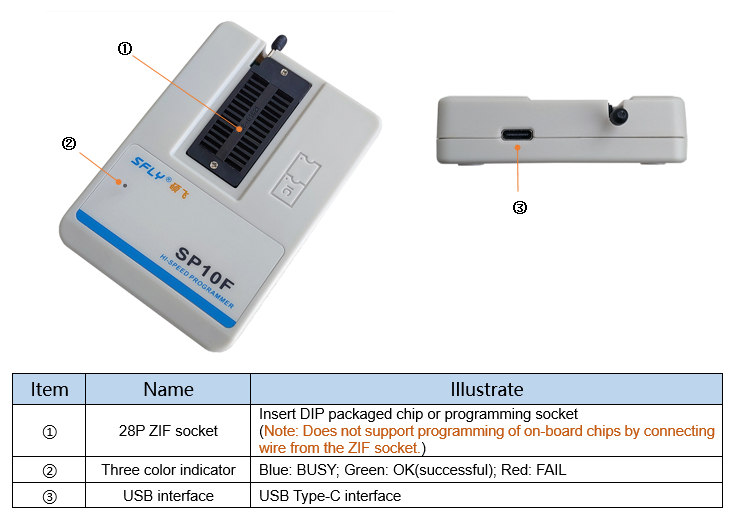

Product Overview

SP20P_Programmer

Hardware features

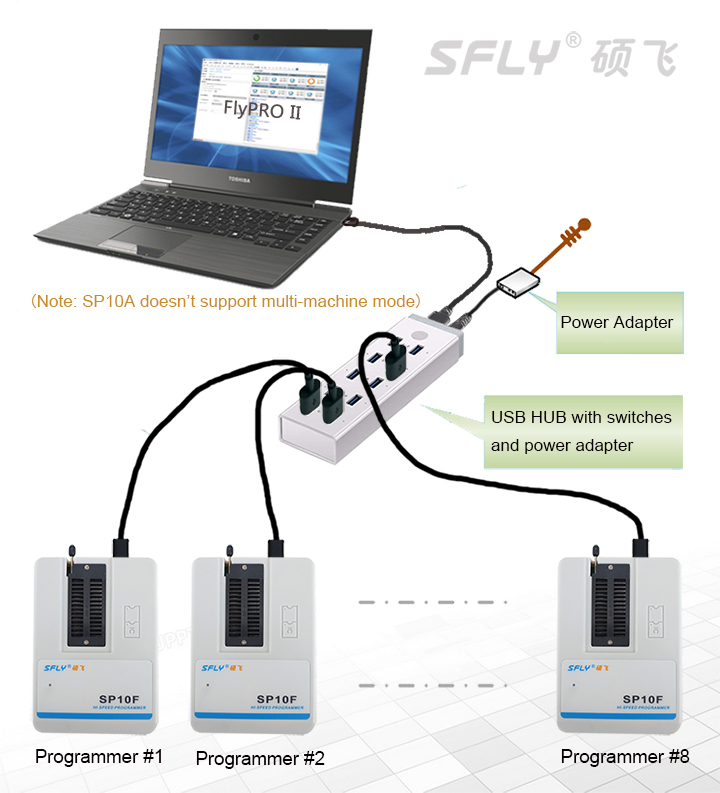

The programmer software supports connecting up to 8 sets of SP10B/SP10F programmers on one computer for simultaneous operation (Note: SP10A does not support multi-machine mode), and supports 8 sets of SP10F programmers for simultaneous downloading of standalone data.

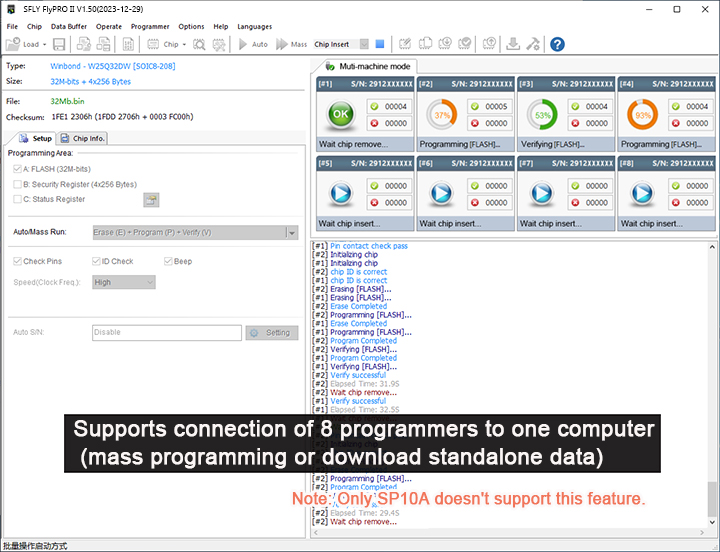

Put the chips into programmer in order, the programmers detects the chips and starts programming automatically. Each programmer works independently and in asynchronous mode, no need to wait for synchronization, with high efficiency.The software interface is as follows.
